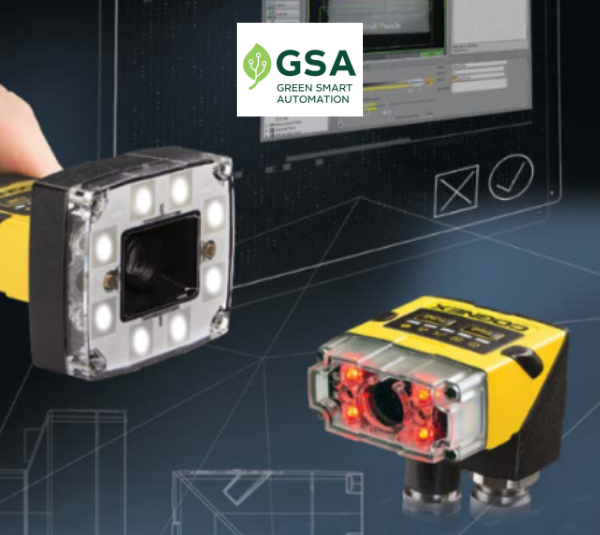

| User Interface |
In-Sight Explorer EasyBuilder, Cognex VisionView PC Software, and VisionView 900 HMI touchscreen panel |
| 1/3 |
Monochrome and Color |
| S-Mount/M12 Lenses |
Standard: Autofocus (liquid lens) 6.2 mm or manual focus 8 mm / Optional: Manual focus 3.6 mm, 6 mm, 12 mm, 16 mm, 25 mm |
| Image Modes |
640 x 480 (standard) / 640 x 480 (2x magnification) |
| Lighting |
Standard: Diffuse white LED ring light / Options: Red, blue and IR LED ring lights and lens filters, and polarized light cover |
| Maximum Acquisition Speed |
75 fps (mono) / 55 fps (color) |
| Relative Processing Speed |
2x |
| Data Output |
Pass / Fail |
| General Protocols |
TCP/IP, UDP, FTP, Telnet, RS-232C |
| Industrial Protocols |
OPC UA, EtherNet/IP with AOP, PROFINET Class B, iQSS, Modbus TCP, SLMP/SLMP Scanner, CC-Link IE Field Basic |
| Connectors |
(1) Industrial M12 Ethernet, (1) M12 Power & I/O |
| Inputs & Outputs |
(1) Acquisition trigger, (1) General purpose input4, (4) General purpose outputs4 |
| Dimensions |
In-line configuration: 43.1 mm (1.69 in) x 22.4 mm (0.88 in) x 64 mm (2.51 in) / Right-angle configuration: 43.1 mm (1.69 in) x 35.8 mm (1.40 in) x 49.3 mm (1.94 in) |
| Weight |
142 g (5 oz) |
| Material and Protection |
Painted aluminum, IP65-rated housing |
| Power |
24 VDC +/- 10%, <3.0 W or Class 1 Power over Ethernet (PoE) |
| PoE Configuration Available |
No |
| Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Location Tools Pattern |
Yes |
| Location Tools Edge, Circle |
No |
| Inspection Tools Pattern |
Yes |
| Inspection Tools Pixel Count |
Grayscale and color |
| Inspection Tools Brightness & Contrast |
Yes |
| Inspection Tools Edges |
No |
| Measurement & Counting Tools Distance, Angle & Diameter |
No |
| Measurement & Counting Tools Patterns & Edges |
No |
| Advanced Features OCR |
No |
| Advanced Features Blob Detection |
No |
| Advanced Features Image Filters |
No |
